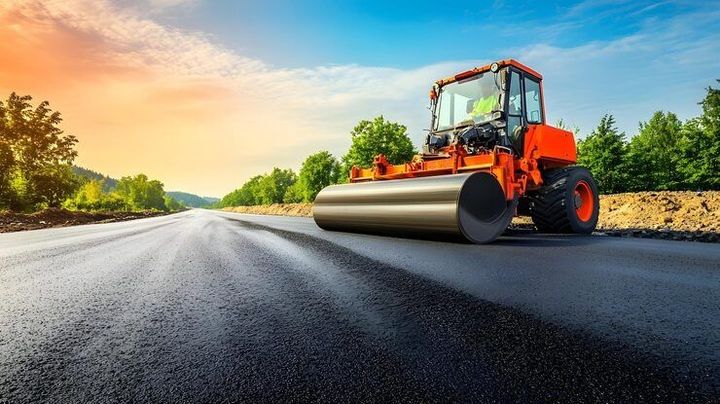

A road roller is a type of construction machine used to compact soil, gravel, aggregate, asphalt, and other materials. By applying static weight, vibration, kneading action, or a combination of these forces, the machine reduces air gaps between material particles and creates a denser, more stable layer. Road rollers are also commonly called compactors or roller compactors.
The development of road rollers followed the need for more consistent ground compaction in road and infrastructure construction. Early rollers relied mainly on heavy weight, while modern machines can combine mechanical vibration, hydraulic systems, electronic controls, and different drum configurations.
Today, road rollers are available in several designs. Smooth-drum, padfoot, pneumatic-tyre, tandem, combination, and vibratory rollers are among the configurations used for different materials and working conditions. The appropriate machine depends on the material being compacted, layer thickness, required density, available working space, and project requirements.
How a Road Roller Works
A road roller moves across a prepared surface while its drum or tyres apply pressure to the material underneath. Static rollers rely primarily on machine weight, while vibratory rollers use a rotating eccentric mechanism to produce rapid drum movement and additional compaction force.
The process normally involves several passes over a material layer. The number and pattern of passes depend on material properties, moisture, layer thickness, machine characteristics, and the required compaction level.
Main Road Roller Components
Although designs differ, common components include the engine or power source, transmission or hydraulic drive system, frame, operator station, steering system, braking system, drum or tyre assembly, vibration mechanism, and control system.
Many asphalt rollers also include a water-spray system. Water is applied to the drum surface to help reduce material sticking during asphalt compaction. Safety equipment can include guards, reversing alarms, lighting, braking systems, seat restraints, and operator visibility features.
Importance
Compaction is an important stage in road construction because loose soil, aggregate, or asphalt can contain significant air spaces. If a layer is not compacted appropriately, later loading and environmental conditions can cause settlement or changes in surface shape.
Road rollers are used to address this problem by applying controlled mechanical forces. They are used on highways, urban roads, parking areas, airport surfaces, embankments, foundations, railway-related earthworks, and other infrastructure projects.
Where Road Rollers Are Used
Common applications include:
- Road and highway construction
- Asphalt paving and surface finishing
- Soil and embankment compaction
- Aggregate and sub-base preparation
- Parking areas
- Airport pavement construction
- Industrial and commercial site preparation
- Railway earthwork
- Utility and trench-related compaction
The machine configuration changes according to the application. For example, smooth or tandem drums are commonly associated with asphalt work, while padfoot drums are designed for cohesive soils. Pneumatic-tyre rollers can provide a kneading action useful for particular asphalt and granular applications.
Why Weight Matters
Operating weight is one of the main specifications used when comparing road rollers. A heavier machine generally applies greater static pressure, but weight alone does not determine compaction performance.
Drum width, drum diameter, vibration frequency, amplitude, travel speed, material type, moisture level, and layer thickness also influence the result. A machine that is unnecessarily heavy may be unsuitable for a small or confined site, while a machine with insufficient compaction capability may require additional passes.
Road Roller Weight Categories
There is no single weight classification that applies to every manufacturer or application. Compact walk-behind machines can weigh around one to several tonnes, while large soil compactors can exceed 20 tonnes. Current equipment references show a broad range across different roller categories.
| Roller category | Approximate operating-weight range* | Typical applications |
|---|---|---|
| Small or walk-behind roller | 1–3 tonnes | Small areas and confined spaces |
| Compact tandem roller | 2–6 tonnes | Paths, repairs, small asphalt areas |
| Medium tandem roller | 6–10 tonnes | Roads and asphalt surfaces |
| Single-drum soil roller | 7–25+ tonnes | Soil, sub-base, earthwork |
| Pneumatic-tyre roller | 7–35 tonnes | Asphalt and granular materials |
| Heavy padfoot roller | 15–30+ tonnes | Large cohesive-soil projects |
*Ranges are general examples rather than fixed industry classifications. Actual specifications vary by machine model and configuration.
Recent Updates
From 2024 through 2026, road roller development has increasingly focused on automation, operator safety, electronic controls, vibration management, and data-based compaction monitoring. Modern construction equipment is increasingly designed to provide operators with more information about machine conditions and operating parameters.
One notable direction is the integration of sensors and digital systems. Depending on the equipment, these systems can monitor vibration settings, machine movement, operating conditions, or compaction-related information. Such technology is part of the wider shift toward connected construction equipment.
Developments in Drum Systems
Vibratory drum systems remain important because they can increase the effective compaction force without requiring the entire machine to become substantially heavier. The vibrating mechanism is generally located within the drum and produces controlled oscillation as the machine travels.
Some newer designs also provide greater control over vibration settings. This allows the operator to adjust machine behavior according to the material and working conditions rather than relying on a single fixed setting.
Operator and Machine Safety
Safety requirements for construction equipment have also received continued attention. India's Ministry of Road Transport and Highways has introduced construction-equipment-vehicle safety requirements covering areas such as operator stations, access systems, guards, audible travel alarms, seat belts, rollover protection, visibility, and other safety features.
The Bureau of Indian Standards' earth-moving machinery standards compendium identifies IS 17055 (Part 13): 2020 as addressing safety requirements for rollers, including vibration, stability, visibility, and control-system considerations.
More Attention to Compaction Control
Construction projects are also making greater use of documented compaction procedures and machine information. Data about passes, operating speed, vibration settings, and surface conditions can help engineers and operators understand how a compaction process is progressing.
These developments do not eliminate the need for material testing or engineering judgment. Soil properties, moisture, layer thickness, and project specifications continue to influence the appropriate compaction method.
Laws or Policies
In India, road roller operation can be affected by workplace safety requirements, construction regulations, equipment standards, and applicable road-transport rules. Requirements may differ according to the type of project, workplace, machine, and whether equipment operates on public roads.
The Building and Other Construction Workers' Central Rules include specific provisions for road rollers. Before a roller is used, the ground should be examined for bearing capacity and general safety, particularly near the edges of slopes such as embankments. The rules also state that a roller should not be moved downhill with the engine out of gear.
General construction-equipment provisions also address items such as brakes, reversing alarms, lights, and other safety features.
Indian standards provide additional technical references. IS 5500 (Part 1): 2004 covers general requirements for self-propelled tandem vibratory rollers, including areas such as dimensions, mass, engine performance, vibration systems, braking, and operator controls.
The applicable requirements should always be checked against the current regulations, project specifications, machine documentation, and relevant state or local rules.
Tools and Resources
Several resources can help readers understand road rollers, compaction practices, and equipment maintenance.
Machine Manuals and Technical Specifications
A manufacturer's machine manual normally provides information about operating weight, drum dimensions, vibration settings, fluid requirements, inspection points, maintenance intervals, and safety procedures. It is the primary reference for a specific machine model.
Compaction Guidelines
Indian road and highway engineering references provide guidance on selecting rollers according to material, layer thickness, and compaction requirements. IRC compaction guidance includes different roller configurations and weight ranges for particular road layers and applications.
Maintenance Records
A basic maintenance record can track:
- Engine oil and filter inspections
- Hydraulic-fluid condition
- Coolant level
- Drum and vibration-system condition
- Tyre pressure where applicable
- Water-spray system condition
- Brakes and steering
- Belts, hoses, and connections
- Warning devices and lights
- Scheduled inspections
Regular inspection helps identify wear or abnormal machine behavior before operation continues under potentially unsuitable conditions.
Selection Worksheet
A simple selection worksheet can record the material type, layer thickness, required compaction method, available site area, machine operating weight, drum configuration, vibration characteristics, travel speed, and transport requirements. Comparing these factors provides a structured way to evaluate different roller configurations.
FAQs
What are the main types of road rollers?
Common types include smooth-drum rollers, vibratory rollers, tandem rollers, pneumatic-tyre rollers, padfoot or sheepsfoot rollers, grid rollers, combination rollers, and compact trench rollers. Each design applies compaction forces differently and is suited to particular materials and site conditions.
How much does a road roller weigh?
Road roller weight varies considerably by machine type and configuration. Small rollers may weigh around 1–3 tonnes, while medium and large machines can range from several tonnes to more than 20 tonnes. Pneumatic-tyre and heavy soil compactors can have higher operating weights.
What is the difference between a single-drum and double-drum road roller?
A single-drum roller generally has one large steel drum and rear wheels or tyres, while a double-drum, or tandem, roller has steel drums at both the front and rear. Single-drum machines are commonly used for soil and aggregate compaction, while tandem rollers are widely used for asphalt work.
What does a vibratory drum do?
A vibratory drum contains a mechanism that produces controlled vibration while the machine moves. The vibration helps rearrange material particles and can increase compaction efficiency, particularly in suitable granular materials.
How is a road roller maintained?
Road roller maintenance normally includes checking fluids, filters, hydraulic systems, brakes, steering, tyres or drums, vibration components, water-spray equipment, warning devices, and other machine systems. Maintenance intervals and inspection procedures should follow the machine's technical documentation and applicable workplace requirements.
Conclusion
Road rollers compact soil, aggregate, asphalt, and other construction materials through static pressure, vibration, kneading action, or combinations of these forces. Types, operating weight, drum systems, and machine controls vary according to the material and application. Recent developments have placed greater emphasis on electronic monitoring, automation, vibration control, and operator safety. Proper selection and maintenance depend on project conditions, machine specifications, applicable standards, and site safety requirements.
